PP Rattan-Like Mat, Flat Yarn Weaving Machine (Jacquard Rapier Loom)
ATC Series Jacquard weaving machine For Decoration PP mat carpet FEATURES (ATC900 36" ATC1200 48" ATC1800 72" ATC2750 108" Mat width ) Machine rotation is faster than that of the previous model Weft PP Pipes are automatically fed by feed roll. In a jacquard system, PP pipes are selected by design cards , which makes it possible To weave variously designed PP mats. The operator can easily change the design by Replacing the design card. One worker can operate 4 to 6 jacquard weaving machines Models equipped with left and right 2-Color Feeders are available for weaving2 to 4 colored PP mats.

Automatic Thickness Adjustable Device This device is for feeding warp thread automatically from the warp beam. Mat length (thickness) is freely adjustable. Feeder for weft PP pipe Feeder capacity is 1.5 times larger than that of the previous model. Which makes it possible to place and stock more PP pipes in the hopper and also makes it very easy to insert pp pipes into the feeder.

Misfeed preventing mechanism (Sequence controller is used) in the event one weft pp pipe is not fed to the machine, this mechanism automatically prevents and removes the next coming pp pipe. Upper guide pipe for warp thread Upper and lower guide pipes are made of high quality stainless steel, thus eliminating the problem of rust. Cam Cam has been especially hardened to endure high speed rotation. Feed roll The feed roll rubber is made of hard urethane of sufficient durability. A special high quality bearing is used for the under roll.

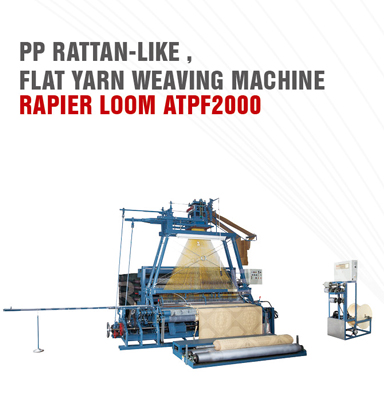

PP Rattan-Like ,Flat Yarn Weaving Machine

Model ATPF2000
Mat Width 2000mm
Motor 380V 50HZ 550W
Main Spindle Speed 40RPM
Shaft Single or Double
Yard Thread Space 2mm-2.5mm
Creels 1000PCS
Outpot 4.5 meters per hour
Machine Net Weight 1900kgs

This Machine can be used for weaving PP Rattan-Like Mats , Flat Yarn Mat ,Rattan,Plastc and Leather ETC.
